Interface:
|
SATA III
|
Capacity:
|
240 GB
|
|
Sustained Read:
|
520 MB/s
|
Sustained Write:
|
300 MB/s
|
|
Nand Flash Memory:
|
2D MLC
|
Warranty:
|
3 Years
|
Solid State Drive A1 2.5 Inch SATA SSD III 240gb 2D MLC SSD 7mm 5V Input
Advantage:
1, High-speed read and write: 10 times faster than the traditional mechanical hard disk
2, 10 seconds fast boot loading
3, The core HLS algorithm super error correction protects data security, make date security and stability.
4, low power consumption and low fever
Function:
Improve the efficiency of the computer / high speed read data / system disk + commonly used software games
|
Specifications:
|
|
Model:
|
CHN-25SATA01M-240
|
|
Product Type:
|
2.5" SATAIII 6Gb/s
|
|
Interface:
|
SATA 3
|
|
Capacity:
|
240GB
|
|
Controller:
|
SMI2246XT
|
|
Nand Flash Memory:
|
2D MLC
|
|
Sustained Read:
|
520 MB/s
|
|
Sustained Write:
|
300 MB/s
|
|
Input Voltage:
|
5V+/_5%
|
|
Idle
|
0.23W
|
|
Active
|
1.25W
|
|
Product Dimensions:
|
100*70*7mm/ 3.9 x 2.8 x 0.3 inches
|
|
Shell Material:
|
Made of Aluminum Alloy
|
|
Warranty:
|
3 years
|
|

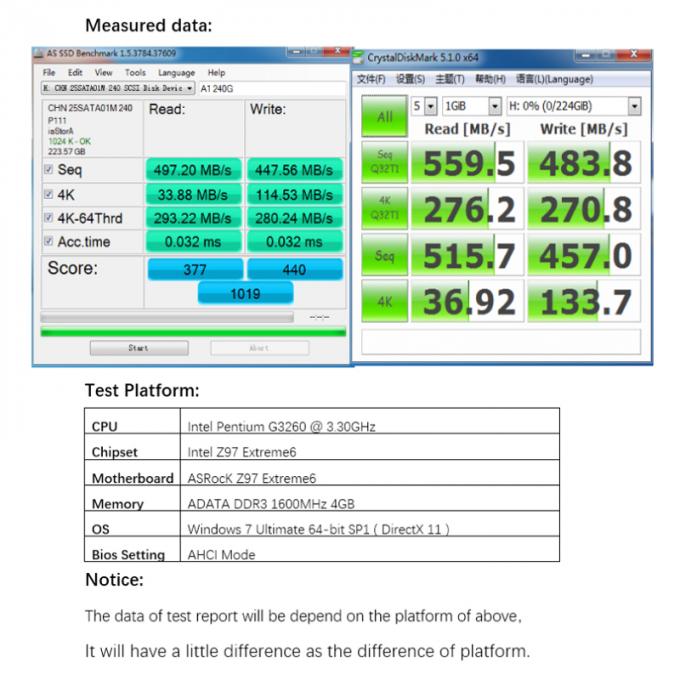

4K Random Read IOPS
|
10168.56
|
|
4K Random Write IOPS
|
8952.49
|
Product description:
Capacity: 240GB
Interface: 2.5 inch SATAIII
Dimension: 3.93*2.76*0.28 inches/100*70*7mm
Weight: 1.6 oz/46 g
Read/write speed: 520MB/s, 300MB/s
Controller: SMI2246HX
Flash Memory : 2D MLC (more stable than TLC or 3D NAND Flash)
Use for :POS Machines, All-in-one PC, Advertising Machines, Notebook, tablet PC,Network Terminals, On-board Computers, Video Surveillance, Servers and other devices which can use SATA HDD
Reliability:
ECC (Error Correction Code): Supports BCH 8/16/24/40 bits ECC
MTBF:>1000,000 hours
TRIM/SMART:Support
Operating Temp:32℉~158℉/ 0℃~70℃
Storage Temp:-40℉~185℉/ -40℃~85℃
Power Consumption:
Input Voltage:5V±5%
Consumption(Active):<3W
Consumption(Idle):0.3W
Warm Reminders: As different platforms of test, please allow 15% test data differs.
